Maximum Shock and Vibration Protection

The Classic Rack case is a smooth finished roto case with a 19" wide EIA standard rack and a variety of rack depths including 17", 18", 20", 23", 25", 28", 33".

Extra rugged, rotomolded Pelican™ Classic Rack cases have demonstrated their strength thousands of times over by saving ultra-fragile equipment from damage during transport. It has the option for a Lock 'N Load, removable rack. It is the strongest, most secure rack in the industry. Our precision - tuned, elastomeric, shock mount systems provide maximum shock and vibration protection for ultra-fragile equipment.

Classic Rack cases are a requirement when you are transporting valuable, highly fragile equipment that needs to get there intact. Nothing protects better than a Pelican™ Classic Rack Case.

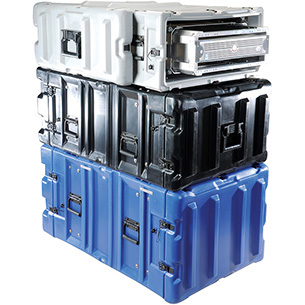

pelican classic extreme heavy duty rack mount case

Specifications

Sizes


3U, 4U, 5U, 6U, 7U, 9U, 10U, 11U, 14U, 21U, and 26U

G-Rating


15 - 30

Payload


8-shock mounts: Up to 170 lbs.
16-shock mounts: 160 - 200 and 200 - 340 lbs

Sway Space


2" for maximum ability to decelerate shock forces and provide airflow

Base Features


  • » Color: Grey (133)
  • » Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB)
  • » Black Stainless Steel Handles
  • » Heavy Duty Reinforced Aluminum Rack Frame

Options/Accessories


Shock/Vibration System

Cylindrical Shock Mounts isolate equipment from vibration as well as impact forces. Shock mounts vary in size depending on protection requirements - from delicate equipment to rugged electronics.

Applications

  • » Military Rapid Deployment
  • » Rack Mountable Precision Test Equipment
  • » Electro-Mechanical
  • » Medical and Biological Diagnostic Equipment
  • » Memory Storage Devices
  • » Meteorological Instruments
  • » Mobile Operations
  • » Broadcast and Video Gear
  • » Laboratory Equipment
  • » Aerospace Instrumentation

Customization

Classic Rack cases are fully configurable and made to order. They can also be customized by our Technical Sales solution team. Call if you need a 1U extension to any of these standard U sizes.

U SIZE

RACK DEPTH

WEIGHT

3U

33.00"
(83.8 cm)

52 lbs

3U

20.00"
(50.8 cm)

45 lbs

3U

33.00"
(83.8 cm)

51 lbs

3U

20.00"
(50.8 cm)

44 lbs

3U

33.00"
(83.8 cm)

50 lbs

3U

20.00"
(50.8 cm)

43 lbs

4U

33.00"
(83.8 cm)

53 lbs

4U

20.00"
(50.8 cm)

50 lbs

4U

33.00"
(83.8 cm)

55 lbs

4U

20.00"
(50.8 cm)

52 lbs

4U

33.00"
(83.8 cm)

54 lbs

4U

20.00"
(50.8 cm)

51 lbs

5U

25.00"
(63.5 cm)

53 lbs

5U

33.00"
(83.8 cm)

58 lbs

5U

20.00"
(50.8 cm)

56 lbs

5U

33.00"
(83.8 cm)

56 lbs

5U

20.00"
(50.8 cm)

54 lbs

5U

33.00"
(83.8 cm)

54 lbs

5U

20.00"
(50.8 cm)

52 lbs

5U

25.00"
(63.5 cm)

57 lbs

5U

25.00"
(63.5 cm)

55 lbs

6U

25.00"
(63.5 cm)

59 lbs

6U

25.00"
(63.5 cm)

57 lbs

6U

20.00"
(50.8 cm)

59 lbs

6U

20.00"
(50.8 cm)

57 lbs

6U

20.00"
(50.8 cm)

56 lbs

6U

25.00"
(63.5 cm)

60 lbs

7U

25.00"
(63.5 cm)

62 lbs

7U

33.00"
(83.8 cm)

63 lbs

7U

25.00"
(63.5 cm)

60 lbs

7U

18.00"
(45.7 cm)

63 lbs

7U

18.00"
(45.7 cm)

61 lbs

7U

18.00"
(45.7 cm)

59 lbs

7U

33.00"
(83.8 cm)

67 lbs

7U

25.00"
(63.5 cm)

64 lbs

7U

33.00"
(83.8 cm)

65 lbs

9U

33.00"
(83.8 cm)

74 lbs

9U

25.00"
(63.5 cm)

73 lbs

9U

33.00"
(83.8 cm)

72 lbs

9U

25.00"
(63.5 cm)

71 lbs

9U

33.00"
(83.8 cm)

71 lbs

9U

25.00"
(63.5 cm)

70 lbs

10U

17.00"
(43.2 cm)

49 lbs

10U

17.00"
(43.2 cm)

47 lbs

10U

28.00"
(71.1 cm)

80 lbs

10U

28.00"
(71.1 cm)

78 lbs

10U

28.00"
(71.1 cm)

76 lbs

10U

17.00"
(43.2 cm)

51 lbs

11U

25.00"
(63.5 cm)

81 lbs

11U

25.00"
(63.5 cm)

78 lbs

11U

25.00"
(63.5 cm)

75 lbs

14U

25.00"
(63.5 cm)

83 lbs

14U

25.00"
(63.5 cm)

81 lbs

14U

25.00"
(63.5 cm)

79 lbs

21U

25.00"
(63.5 cm)

107 lbs

21U

25.00"
(63.5 cm)

105 lbs

21U

25.00"
(63.5 cm)

103 lbs

26U

23.00"
(58.4 cm)

123 lbs

26U

23.00"
(58.4 cm)

121 lbs

26U

23.00"
(58.4 cm)

119 lbs
