Industrial Bin Lids

Pelican-Trimcast Industrial Skip Bin Lids
Pelican-Trimcast Industrial Bin Lids are manufactured locally in Australia from high quality, UV stabilised plastic and are uniquely designed with a number of features to meet the requirements of the Australian Waste Management market.
- Designed to fit 1.5m and 3.0m front-lift industrial bins
- Specially designed for maximum strength and rigidity
- Rotationally moulded from Linear Low-density Polyethylene plastic
- UV stabilised to endure the harsh Australian climate
- Unique ribbing provides a streamline finish and allows for safe stacking during transport and storage
- Features reinforced hinge area for maximum durability
- Fitted with corrosion resistant hardware
- Finger grips at the front of lid for user safety and comfort when lifting
- Incorporates 3 in-moulded lid-stay positions as standard, for the easy attachment of a lid stay using a through bolt
- Ability to add personalized logo’s or branding through hot-stamping
- Multiple hinge bar locations:
- 30mm diameter holes
- 30mm or 60mm hinge bar hole locations

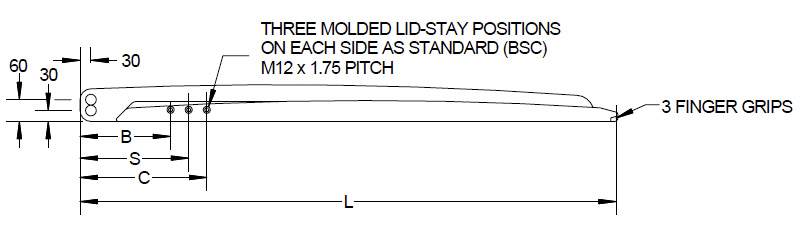

Bin Lid Dimensions
Lid Size (m3) | 1.5m | 3m |
L (mm) | 1040 +8, -0 | 1490 +12, -0 |
B (mm) | 220 | 250 |
S (mm) | 270 | 300 |
C (mm) | 320 | 350 |

Color Options
Black
Blue
Red
Yellow

Bin Lid Specifications
Size Options | Weight | Lid | Hardware | Markings |
1.5m 3.0m |
1.5m = 6.5 kg 3.0m = 10kg |
Linear Low Density Polyethylene | Brass Threads | Optional Hot Stamping Available |
